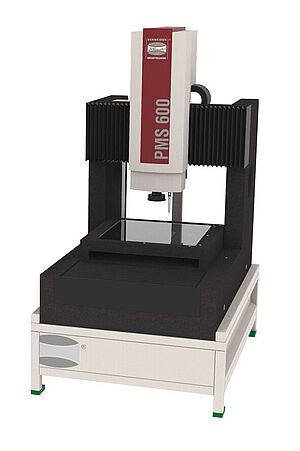

3D multi-sensor portal measurement machine

Schneider Messtechnik PMS 600

From now on we are able to measure workpieces inhouse tactile or scanning and to record the results automatically.

measurement range X 600 Y 600 Z 300



Configuration:

  • 3 axis CNC
  • control, measurement and analysis software „Saphir“
  • tactile probe type Renishaw SP25
  • high-resolution CCD camera
  • telecentric diode-transmitted-light
  • motor zoom with coaxial incident light
